May 2 - Week 15 Spring 2018

Today we finished up on working on our tracks. We attached our vertical columns made up of 3 2x4s to the track.




The use of 3 2x4s helps with the strength of the structure as well as its ability to resist a bending moment.
The smaller block attached perpendicular to this column was used in order to help the column easily align with the track, as well as provide additional load bearing strength. Instead of creating a moment when the column is directly applied to the track, weight will be transferred onto these blocks providing additional support.

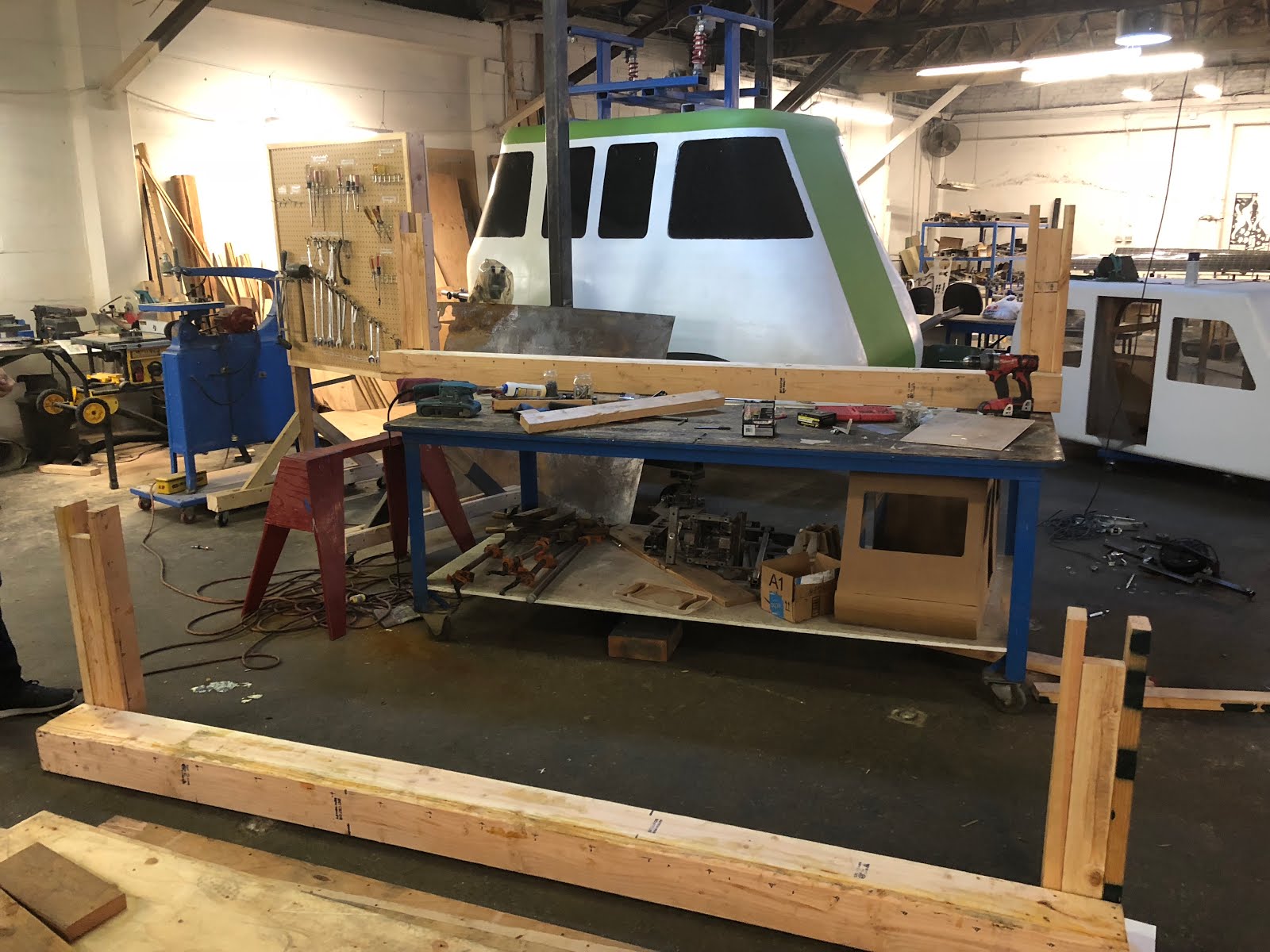

These are the finished track beams which will be later inserted into the horizontal columns of our main structure's supports.

Comments

Post a Comment

Popular posts from this blog

May 9 - Week 16 Spring 2018

This week we finished up on assembling the vertical and horizontal columns. We are pretty much finished with our structure, and will just need to install the track as well as horizontal bracings to prevent the majority of the flexing. The next steps we will have to complete this weekend are to finish mounting our tracks onto the supports, as well as finding a way to secure these horizontal supports onto our vertical columns. After that we will just need to install additional 2x4 pieces of wood onto our horizontal beam. This is due to our length of the structure just being a couple inches shorter than the solar canopy. To accommodate for this we will need to extend it so that their supports will line up with our horizontal column and mount onto it.
Read more

November 15, 2017 - Week 13

This week I reviewed a couple of my current design ideas. The cable idea for the trussing system has now been scrapped, as compression forces will need to be accounted for. The top running beam is too small and flimsy to be able to carry load on its own. Therefore I will need to revise my previous X-bracing design to maximize strength while minimizing the volume. Other design changes and new designs I have been working on have been the vertical column supports and clamps, as well as making a mounting bracket for the track to attach to the horizontal crossbeam. The difficult part of this task is to determine where the placement of the bracket should lie. As the vertical hangers are very small and have few mounting holes, figuring out the size and orientation of these brackets will be difficult to visualize. After these two parts are completed, I will be able to run a stress analysis on the whole assembly to determine if there are failure points and what may require reinforcements.
Read more

April 25 - Week 14 Spring 2018

Today we continued to work on making our track section of our structure. With some rough sketches completed, I was able to figure out how to set up all the material and how they would all be assembled together. These rough sketches were also to be used to send to Futran, letting them know that the structure we were building did not violate the NDA signed with them as we will be needing to bring it to MakerFaire for display. The vertical columns are made out of simple 4x4 beams and no longer utilize the Solomon's knots. The track section is only composed of several pieces of wood held together horizontally and vertically. This design does not incorporate any of Futran's track designs so should not have any affect towards the NDA signed. Focusing on the track section, we used 4 pieces of 10 feet 2x6 wood, clamping two with each other through using wood screws and glue. In addition, we added blocks near the ends of these beams for reinforcement as well as areas ...
